DDR3 memory controller (up to 1600MHz), Intel Turbo Boost 2.0 (3.10GHz), HT technology 16GB max7 / PC3-MHz DDR3, non-parity, dual-channel capable, two 204-pin SO-DIMM sockets. System automatically clocks down for processors with 1333MHz DDR3 memory controller DVD burner, 12.7mm Ultrabay Enhanced, removable. Lenovo ThinkPad W530 Lenovo ThinkPad W530. Intel HD Graphics 4000, Professional 64DDR3 memory controller. Two PCI Express Mini Card slots.

Lenovo Thinkpad W530 Ram Slots

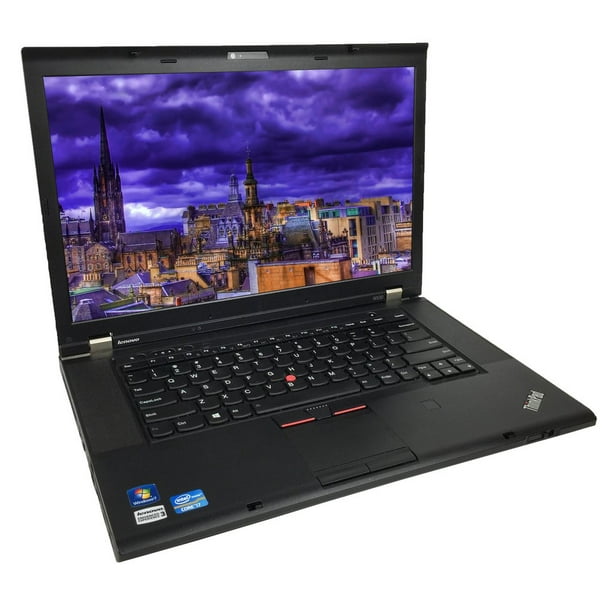

ThinkPad W530

This page gives an overview of the ThinkPad W530.

Standard Features

  • One of the following processors:
    • Intel Dual Core i5-3320M (3.30Hz, 3MB L3, 1600MHz FSB, 35W)
    • Intel Dual Core i7-3520M (3.60GHz, 4MB L3, 1600MHz FSB, 35W)
    • Intel Quad Core i7-3610QM (3.30Hz, 6MB L3, 1600MHz FSB, 45W)
    • Intel Quad Core i7-3630QM (3.40Hz, 6MB L3, 1600MHz FSB, 45W)
    • Intel Quad Core i7-3720QM (3.60GHz, 6MB L3, 1600MHz FSB, 45W)
    • Intel Quad Core i7-3740QM (3.70GHz, 6MB L3, 1600MHz FSB, 45W)
    • Intel Quad Core i7-3820QM (3.70GHz, 8MB L3, 1600MHz FSB, 45W)
    • Intel Quad Core i7-3840QM (3.80GHz, 8MB L3, 1600MHz FSB, 45W)
    • Intel Quad Core 'Extreme' i7-3920XM (3.80GHz, 8MB L3, 1600MHz FSB, 55W)
    • Intel Quad Core 'Extreme' i7-3940XM (3.90GHz, 8MB L3, 1600MHz FSB, 55W)
  • One of the following discrete graphics cards:
    • NVIDIA Quadro K1000M with 2GB DDR3 and 192 CUDA cores running at 850MHz, and with Optimus™ Technology
    • NVIDIA Quadro K2000M with 2GB DDR3 and 385 CUDA cores running at 745MHz, and with Optimus™ Technology
  • One of the following TFT displays:
    • 15.6' TFT display with 1366x768 (HD) resolution with LED backlight
    • 15.6' TFT display with 1600x900 (HD+) resolution with LED backlight
    • 15.6' TFT display with 1920x1080 (FHD) resolution with LED backlight
  • up to four external monitors
  • 2GB, 4GB or 8GB DIMMS PC3-12800 memory standard
    • 2 DIMM slots on dual-core models (up to 16GB)
    • 4 DIMM slots on quad-core models (up to 32GB)
    • Samsung M471B5273DH0-CK0 DDR3-1600 SDRAM (10-10-10-27 @ 761 MHz) (9-9-9-24 @ 685 MHz) (8-8-8-22 @ 609 MHz) (7-7-7-19 @ 533 MHz) (6-6-6-16 @ 457 MHz) (5-5-5-14 @ 380 MHz)
  • One of the following storage options:
    • 320GB 7200rpm 2.5' SATA HDD
    • 500GB 7200rpm 2.5' SATA HDD
    • 128GB Samsung SATA 3 SSD
    • 180GB Intel SATA 3 SSD
  • 6-row, 84-key, ThinkVantage button, spill-resistant, multimedia Fn keys chiclet keyboard with optional LED backlight
  • Intel HD Audio with a Realtek ALC269VC codec
  • Serial Ultrabay Enhanced with one of the following:
  • MiniPCI Express slot 1 with one of the following:
    • Thinkpad b/g/n
    • Intel Centrino Advanced-N 6205 (2x2 AGN)
    • Intel Centrino Ultimate-N 6300 (3x3 AGN)
  • MiniPCI Express slot 2 with one of the following:
    • None (empty)
    • Sierra Wireless MC8355 Gobi 3000 WWAN (US, supports EV-DO/HSPA)
    • Ericsson H5321gw WWAN (3G for all non-US countries)
    • LeadCore LC5730D WWAN (only for China)
    • Huawei EM660 WWAN (only for China)
    • Intel 310 mSATA 16GB or 32GB SSD
  • Lenovo Integrated Smart Card Reader (Optional)
  • 4-in-1 MultiCard Reader (SD/SDHC/SDXC/MMC slot)
  • 720p Integrated camera on select models
  • Huey PRO Colorimeter by X-Rite on select models
  • Integrated Fingerprint Reader on select models
  • ThinkPad Bluetooth with Enhanced Data Rate (BDC-4.0) on select models
  • UltraNav (TrackPoint / Touchpad combo)
  • Firewire 400 (IEEE1394a)
  • Intel Active Management Technology (AMT) on select models

Resources

Reviews

  • Notebookcheck, 2012-08-17
  • Laptop Mag, 2012-07-20
  • Notebook Review (User Review), 2012-08-22
  • andrewbaxter's review (Lenovo Forums), 2011-10-25
  • Keith Combs' Blahg, 2012-07-09
  • pensare's review (Lenovo Forums), 2013-07-02
  • Djembe's review (Lenovo Forums), 2012-06-10
  • SolidSmack, 2012-11-7
  • Hardware.info, 2013-03-28
DriversLenovo thinkpad w530 review

Linux Installation

W530
  • Installation of Fedora 17 on a ThinkPad W530

Known Issues

  • On the newer BIOSes it is impossible to boot with the 'Dedicated Only' graphics card option. The only known fix is to flash an older BIOS (circa 2013). Even then, the issue won't be completely solved.
  • Overclocking is not possible due to locked BIOS, even on the XM edition processors. This also affects the usability of ThrottleStop. The only fix is to hardware flash a modified BIOS.
  • Throttling occurs on battery in quad core configured versions. The clock is then limited to 1.2 GHz.
  • There is an interenal Wi-Fi card whitelist. It can be only removed by using a modified BIOS.
  • Power supplies with wattage lower than 135W won't be able to charge the battery while the laptop is on.
  • The W530 comes with a special 170W AC adapter (P/N 0A36227 for US or 0A36231 for EU) that makes it impossible to use it on older equipment (besides W520). See here for additional information.
Lenovo thinkpad w530 ram slots reset

Subcategories

This category has only the following subcategory.

Pages in category 'W530'

The following 47 pages are in this category, out of 47 total.

A

B

C

E

F

H

I

M

N

O

P

P cont.

S

T

U

V

W

Retrieved from 'https://www.thinkwiki.org/w/index.php?title=Category:W530&oldid=58748'

Lenovo Thinkpad W530 Ram Slots Drivers

  • Comparison Criteria
    • Summary
    • multimedia
    • performance
    • memory
    • display details
    • peripherals
    • general information
    • networking
    • storage
    • battery
    • ports
    • others
X

Lenovo Thinkpad W530

X

Lenovo Thinkpad W540 (20BG000SAU) Laptop (Core i7 4th Gen/16 GB/1 TB/Windows 7/2 GB)

X
Summary
storage500 GB HDD1 TB HDD
processorIntel Core i7 (3rd Gen) ProcessorIntel Core i7 4th Gen Processor
display15.6' (39.62 cm) display, 1920 x 1080 px15.5' (39.37 cm) display, 2880 x 1620 px
ram8 GB DDR3 RAM16 GB DDR3 RAM
secondary camrearfacing
sound technologiesDolby Home Theater v4Dolby Home Theater v4
webcam
audio solutionHD Audio SolutionHD Audio Solution
speakersLenovo audio speakerStereo Speakers
webcam resolution0.3 MP-
video recording720p HD720p HD
performance
clockspeed2.7 Ghz2.8 Ghz
graphic processorQuadro K1000MNVIDIA Quadro K2100M
processorIntel Core i7-3820QM (3rd Gen)Intel Core i7-4900MQ
graphics memory2 GB2 GB
ram typeDDR3DDR3
memory layout1 x 8 Gigabyte2 x 8 Gigabyte
memory slots2 DIMM4 SODIMM
ram speed1600 Mhz1600 Mhz
expandable memory32 GB32 GB
capacity8 GB16 GB
display details
display typeLEDLED
display size15.6 Inches (39.62 cm)15.5 Inches (39.37 cm)
display resolution1920 x 1080 Pixels2880 x 1620 Pixels
display touchscreen
display featuresFHD anti-glare DisplayHD LED Antiglare Display
drive typeCD Writer-
keyboardThinkPad Precision KeyboardFull-sized, spill-resistant keyboard
pointing deviceTouchpad with Multi-touch Gesture supportTouchpad with Multi-touch Gesture Support
fingerprint scanner
optical driveMulti-Burner/DVD CD Multi-RecSuperMulti DVD Burner
general information
dimensionswxhxd372 x 245 x 35.6 mm377 x 248 x 27.9 mm
operating system type64-bit64-bit
weight2.7 Kg2.5 Kg
operating systemWindows 7 ProfessionalWindows 7 Professional
modelW530 (2447-NK0)W540 (20BG000SAU)
brandLenovoLenovo
colorsBlackBlack
wireless lan802.11 a/g/n802.11 a/b/g/n
bluetooth
bluetooth version4.04.0
storage
hdd speedrpm5400 RPM5400 RPM
hdd capacity500 GB1 TB
hdd typeSATASATA
power supply180 W AC Adapter W-
battery life8 Hrs11 Hrs
battery typeLi-IonLi-Ion
ports
sd card reader
vga port
usb 30 slots22
microphone jack
headphone jack
usb 20 slots12
sales packageLaptop, Battery, AC Adapter, User GuideLaptop, Battery, AC Adapter, User Guide
warranty3 Years1 Year
